As medical devices shrink to navigate tiny, complex anatomical pathways, the manufacturing tolerances required to produce them have reached the sub-micron scale.
Components like neurovascular catheters, bioresorbable stents, and implantable drug delivery pumps demand features so small that traditional machining methods can no longer handle them efficiently without compromising material integrity.
Advanced laser drilling provides a non-contact alternative that delivers exceptional precision and structural repeatability across millions of parts.
Table of Contents
Laser drilling is the process of removing material through localized thermal or photochemical reactions using a highly concentrated beam of light.
Computer-controlled optical lenses focus raw photonic energy onto a targeted zone. When the laser beam hits the substrate, the energy instantly melts or sublimates (vaporizes) the material.
This rapid energy transfer allows manufacturers to create high-aspect-ratio micro-holes down to five to six microns in diameter, far smaller than a human hair (which averages around 70 microns).
Because the entire process is driven by software-guided optics, the beam can be modulated, pulsed, and positioned with extreme predictability, ensuring that holes in a dense array remain precise.
For decades, mechanical drilling was the standard for creating orifices in manufacturing. However, when applied to micro-scale medical components, mechanical methods introduce significant risk. Laser drilling solves these fundamental limitations.
Mechanical drill bits degrade quickly, especially when cutting through medical-grade metals like titanium or stainless steel. As the bit wears down, hole geometry drifts, and parts get rejected. Because laser drilling utilizes no physical bits, there is no tooling degradation.
With lasers, changeovers are fast since you can change the recipe in the software rather than having to manually swap drill bits or recalibrate spindles.
When a drill bit cuts through material, it creates chips, small fragments, and raised metal ridges. In medical manufacturing, even a single microscopic burr can catch on tissue or alter fluid dynamics. Laser drilling's energy vaporizes material instantly. This clean removal process reduces or entirely eliminates the debris and rough burrs common with mechanical bits.
Because the laser drilling process is exceptionally clean, manufacturers can often skip a secondary cleaning process like acid-washing, chemical etching, or mechanical deburring. This can significantly shorten cycle times and reduce chemical waste. As a result, this lowers the total cost per part.
The right laser for medical manufacturing depends on the material being processed, the required hole diameter, and the allowable thermal impact.

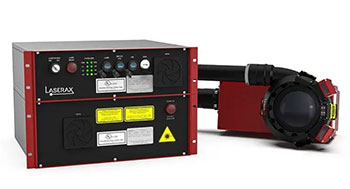

Fiber lasers operate in the infrared spectrum and are highly effective for cutting and drilling robust, thin metals. Because metals absorb their infrared wavelength efficiently, fiber lasers offer high throughput and fast processing speeds. However, because they rely on thermal energy, they are typically not used on delicate, thin-walled polymers that may melt.
UV lasers operate via photo-chemical ablation rather than thermal destruction. Instead of melting the material, UV wavelengths break molecular bonds cleanly at an atomic level. This cold-cutting mechanism makes them highly compatible across diverse material classes, especially delicate substrates requiring highly dense arrays of sub-10 micron holes.
Nanosecond lasers fire pulses lasting a few billionths of a second. They are best utilized when high-volume material removal is required, and minor edge melting or micro-burrs are acceptable or easily cleaned in post-processing. As such, nanosecond lasers are an economical choice.
Serving as an ideal intermediate solution, picosecond lasers fire pulses in the trillionths of a second. By compressing the pulse duration, they significantly reduce the heat-affected zone (HAZ) for cleaner edges and sharper geometries for mid-to-high precision applications.
Femtosecond lasers fire pulses in the quadrillionths of a second, faster than the thermal conduction time of the material. The substrate vaporizes before heat can conduct into the surrounding area, achieving true cold ablation and yielding the cleanest micro-holes possible without any melting or micro-cracking.
CO2 lasers utilize a longer infrared wavelength. While they can create localized thermal distortion that makes them unsuitable for ultra-precise metal implants, they excel when tuned to specific wavelengths for rapid, clean drilling through organic materials, fabrics, and medical plastics.
The strict regulatory landscape and functional demands of medical devices leave no room for error. Laser drilling addresses these stringent requirements through several distinct advantages.
Modern laser drilling systems integrate high-resolution vision alignment cameras, which automatically scan the part, orient the beam dynamically to adjust for part-to-part variance or fixture positioning, and execute micro-holes with tolerances tracking down to one micron. This automation achieves perfectly uniform taper, cylindricity, and repeatability across production cycles.
When heat transfers into a metal or polymer, it can alter the material's crystalline structure, making it brittle or warped. By utilizing ultrafast pulses, picosecond and femtosecond lasers compress energy fast enough that the surrounding material experiences almost no thermal rise. This eliminates the risk of micro-cracking, delamination, or structural warping on ultra-thin components.
By selecting UV, picosecond, or femtosecond configurations, holes are drilled without leaving raised slag or recast material. This smooth finish protects component sterility as there are no microscopic crevices where bacteria might hide. It also eliminates most post-processing.
Instead of moving a heavy physical spindle up and down for each hole, laser systems use CNC galvo scanning heads. These are computer-controlled mirrors that move the laser beam across an array of dozens of clamped parts in a single cycle, drastically reducing cycle times and production costs.
Laser drilling is used across nearly every sector of medical device fabrication to improve product performance and patient outcomes, including:
Medical devices utilize an array of high-performance materials, and laser drilling can adapt to different substrates.
| Material Category | Specific Material | Common Applications & Laser Requirements |
|---|---|---|
| Metals | Stainless Steel (304/316L)
Nitinol (Nickel-Titanium)
Titanium & Cobalt-Chromium | Standard surgical tools, laparoscopy instruments, and needles requiring highly consistent, repeatable hole dimensions.
|
| Polymers & Electronics | Polyimide, PEEK, & PTFE
| High-performance plastics used in flexible catheter jackets, structural shafts, and insulating linings. Best processed with UV or ultrafast lasers. Utilizing precise depth control ("kiss cutting") to drill or ablate outer insulation layers to expose underlying flexible electronic circuits or create localized electrical contact pads. |
| Specialized Biocompatibles | Technical Ceramics & Bio-resorbales | Processing advanced technical ceramics, bio-resorbable polymers, and multi-layer composites that would micro-crack, break, or shatter under physical mechanical drill pressures. |
Manufacturing medical devices requires consistently meeting quality benchmarks and complying with regulations.
Micro-cracks along the inner walls of a drilled hole act as stress-concentration points. Under cyclic bodily loads, such as a beating heart flexing a stent millions of times a year, these micro-cracks can expand, leading to life-threatening failures. Smooth, clean hole walls with zero micro-cracking or recast layers are essential to human safety.
Because these parts are used inside human patients, the entire laser drilling process must undergo rigorous validation before commercial production can begin. This requires complete Installation Qualification, Operational Qualification, and Performance Qualification (IQ/OQ/PQ) protocols, and alignment with FDA QMSR) and ISO 13485.
If a device fails in the field, manufacturers must be able to trace its exact manufacturing conditions. Modern laser system software records and documents real-time telemetry, such as pulse energy, gas pressure, laser power stability, and vision alignment data. This provides full traceability for FDA audit logs.
When integrating a laser cell into your facility, selecting the right partner is crucial to your success.
Ensure the vendor deeply understands the metallurgical behavior of memory alloys like Nitinol and advanced medical-grade polymers under thermal load. They should possess application engineering data to back up their system configurations.
Your vendor must feature integrated vision inspection systems that handle both real-time beam positioning control during production and automated post-drill geometric validation to catch defects instantly.
Look for a partner capable of taking a project from rapid R&D prototyping up to high-volume production. This includes having the engineering infrastructure to network multiple automated laser cells together, ensuring matching performance profiles across identical machine configurations.
Laser drilling can consistently produce hole diameters as small as five to six microns, depending on the material type, thickness, and choice of laser wavelength.
Heat can destroy Nitinol's shape-memory effect. However, femtosecond lasers using cold ablation ablate materials so that the surrounding Nitinol retains its superelastic properties.
By controlling the number of laser pulses, pulse energy, and beam frequency, laser systems can drill to exact depths without penetrating the underlying layers.
Laser systems will cost more than mechanical drills, but save money over time by eliminating tool wear, avoiding manual deburring processes, and reducing cycle times. Most importantly, you get consistent precision to meet strict compliance regulations.
Laserax designs and integrates high-precision laser systems for demanding medical manufacturing applications. Our application experts can help you identify the right laser technology, optimize your process, and validate it for reliable, high-volume production. Contact us to discuss your application with our team.
